42STH47 standard

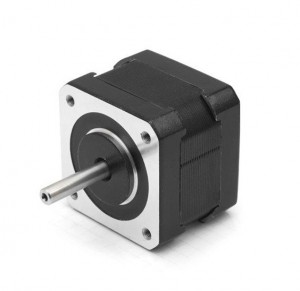

The 42H47?motor?is a very common two-phase hybrid stepping motor, 42mm square flange, body height 47mm (48mm), torque 0.5Nm, step angle 1.8 degrees, optional encoder for installation, to achieve higher precision positioning See 42H47ENC5 version. In addition, our company can provide various drive control modules.
Features
- Standard size
- High-speed output
- Optional encoder, optional drive control module
- Stable and reliable
- Support customization
規(guī)格參數(shù)
| 額定轉速（rpm）: | 1000 rpm |
| 法蘭尺寸（mm）: | 42 mm |
| 力矩（Nm）: | 0.5 Nm |
| 步距角（°）: | 1.8 |
| 選裝變速箱: | 是 |
| 可選: | 編碼器&減速箱 |
| 定制化: | Customization data |
| 可選驅動器/控制器: |

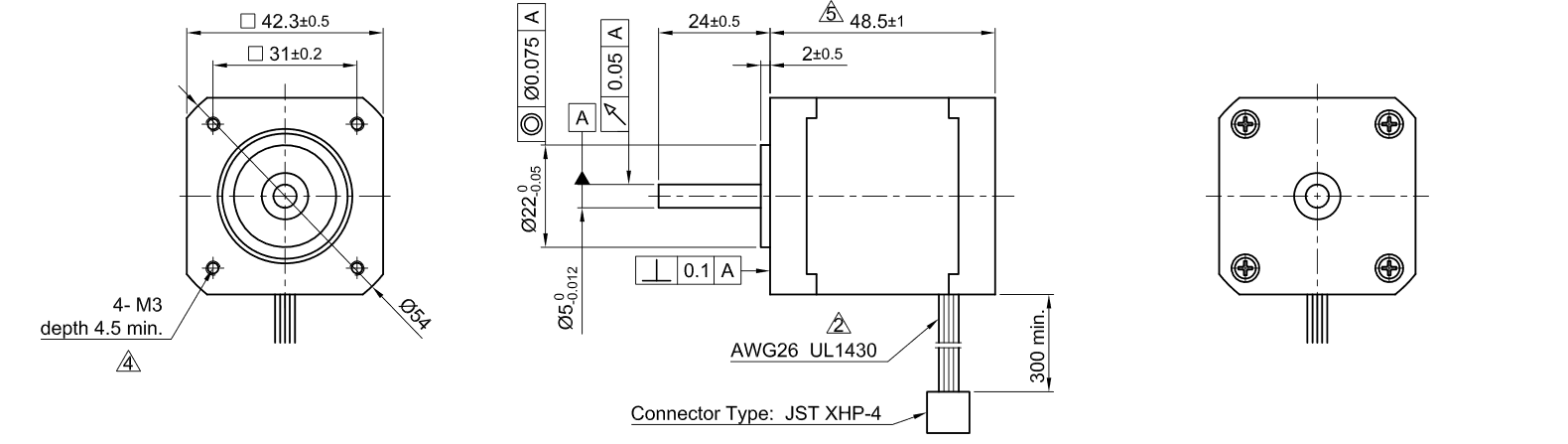

Size(mm)
Torque（Horizontal coordinate rpm, vertical coordinate Nm）
*The results obtained by different drive modules will be different
Application suggestions
*High-speed and high-precision positioning, closed-loop version is recommended
*shaft can be customized
Esle Common shaft
????????????????????????????

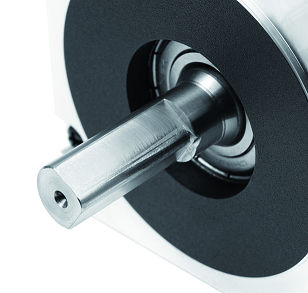

D-cut：Cut in D direction, plane for fixing?? Short output shaft
?
?
