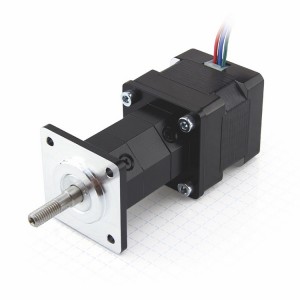

L3518S1204-T5X5-A50
Compact linear actuator in size NEMA 14 (35 mm) with extremely high positioning speed, short positioning time and high thrust and tensile force. Thanks to its integrated linear guide, it allows for high-precision feeding without additional mechanical components.
Please note:
- The force and output power ratings listed in the data sheets are based on a duty cycle of approx. 10% to 20% and must be reduced for higher values.
- Moving against fixed limit stops should be avoided.
規格參數
| 推力（N）: | 85 N |
| 速度（mm/s）: | 200 mm/s |
| 法蘭尺寸: | 35 mm |
| 機身長度: | 34 mm |
| 輸出類型: | 固定軸式 |
| 內置編碼器: | 否 |
| 可選: | 編碼器 |
| 可選驅動器 / 控制器: |
CL3-E - Motor controller for CANopen, Modbus RTU or USB ? ? ? |
Technical Data? ?
Dimensions? ?
Torque? Curves
文檔下載
| 文件 | 類型 | 大小 | 最后更新 | 鏈接 |
|---|---|---|---|---|
| L35-A Product_Overview | 258.335KB | 3月 / 17 / 2020 | Download | |
| L3518S...A50 3D Model | stp | 2.744MB | 3月 / 16 / 2020 | Download |
| L3518S1204-T5x5-A50 Data Sheet | 125.265KB | 3月 / 16 / 2020 | Download | |
| Linear Motor Catalog | 117.093KB | 3月 / 16 / 2020 | Download |
