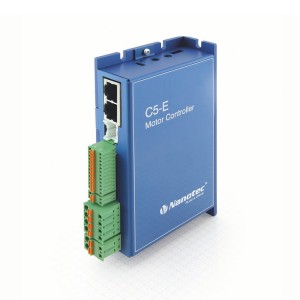

400W DC Servo Controller-C5-E
Suitable for driving 400W DC servo system. Compact size without additional heat dissipation. CANopen bus interface. Suitable for DC servo motors with any number of pole pairs.Continuous rated output 0-10A, peak 30A current.
Features
- Controlled by CANopen & I/O
- Easy to parameterize via?CANopen or USB
- Simple programming with the Plug & Drive Studio
- Any number of pole pairs dc servo
- 450W rated power
- Brake output
規(guī)格參數
| 額定電流（A）: | 6/10 A |
| 供電電壓 V DC: | 12-48 V DC |
| 控制接口: | Canopen |
| 輸入 & 輸出: | 5 Digital inputs (5/24 V switchable ) 2 ?Analog input -10 - +10 V/0-20 mA switchable 3 Digital outputs |
| OEM可編程: | Yes |
| 定制化: | OEM logic program |
| 適用電機: | stepper and DC servo motor |
文檔下載
| 文件 | 類型 | 大小 | 最后更新 | 鏈接 |
|---|---|---|---|---|
| Product Overview C5-E | 764.062KB | 12月 / 27 / 2019 | Download | |
| C5-E-x-09_CANopen_USB_Technical-Manual_V2.0.0 | 4.692MB | 12月 / 25 / 2019 | Download | |
| PNDS-2.0.5-release-package | zip | 323.863MB | 12月 / 19 / 2019 | Download |
