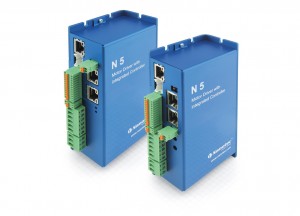

800W DC Servo Driver-N5-2-2
Suitable for DC servo motors with any number of poles between 0-864W. The rated output current is up to 18A and the peak current is up to 40A. It is extremely compact and requires no additional heat sink. A variety of bus interfaces are available, such as CANopen and EtherCAT, Ethernet / IP, Modbus, etc.Widely used in various mobile robots and automation equipment.
Features
- Suitable for 750W motor，Any brand of DC servo motor(Incremental encoder)
- Easy to parameterize via CANopen, EtherCAT, Ethernet, EtherNet/IP or Modbus ??????(RTU and TCP)
- Brake output
- 12-58V DC
- Rated current 18A, peak?current 40A
規格參數
| 額定電流（A）: | 18 A |
| 供電電壓 V DC: | 12-58 V DC |
| 控制接口: | Canopen |
| 輸入 & 輸出: | 5 Digital inputs (5/24 V switchable ) 2 ?Analog input -10 - +10 V/0-20 mA switchable 3 Digital outputs |
| OEM可編程: | Yes |
| 定制化: | OEM logic program |
| 適用電機: | stepper and DC servo motor |

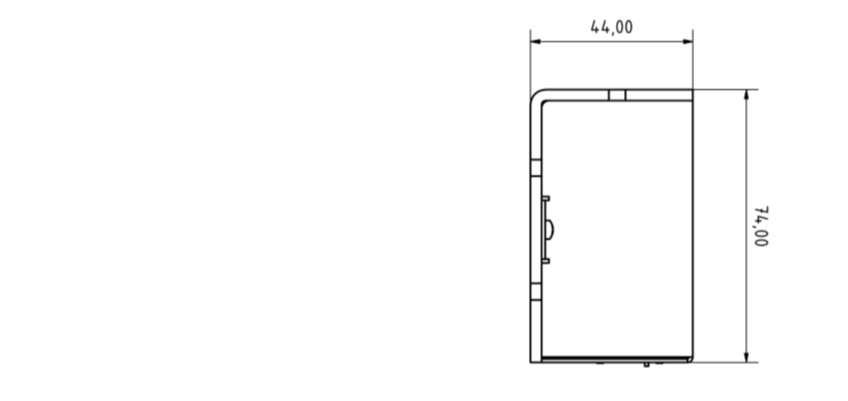

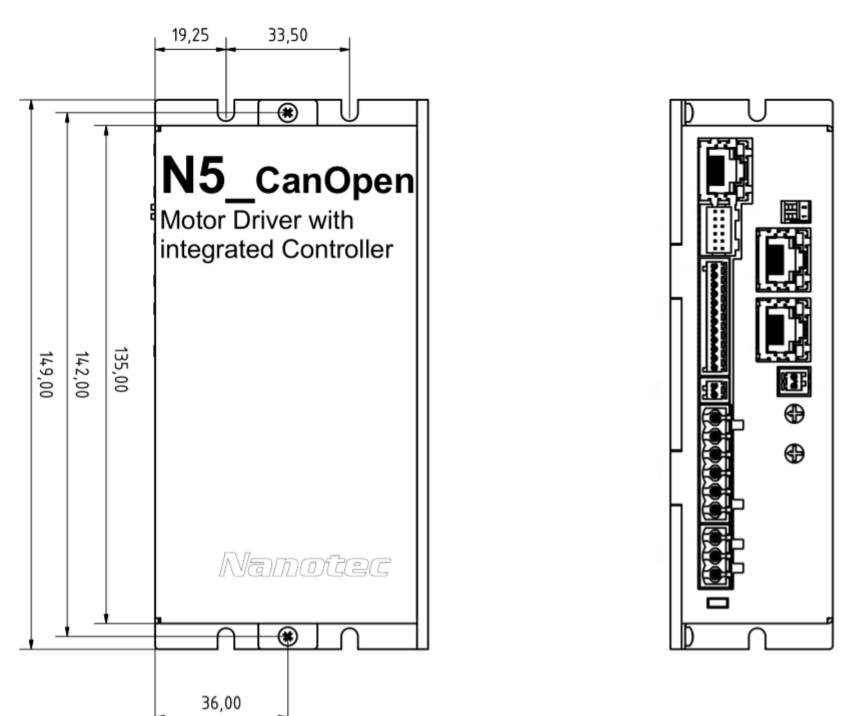

Dimension
?
?Connect
?
文檔下載
| 文件 | 類型 | 大小 | 最后更新 | 鏈接 |
|---|---|---|---|---|
| N5-x-2_CANopen_Technical-Manual_V2.0.1 | 6.7MB | 12月 / 25 / 2019 | Download | |
| PNDS-1.0.4-release-package | zip | 181 MB | 6月 / 23 / 2020 | Download |
| N5-2-2 3D Model | stp | 4.778MB | 12月 / 25 / 2019 | Download |
