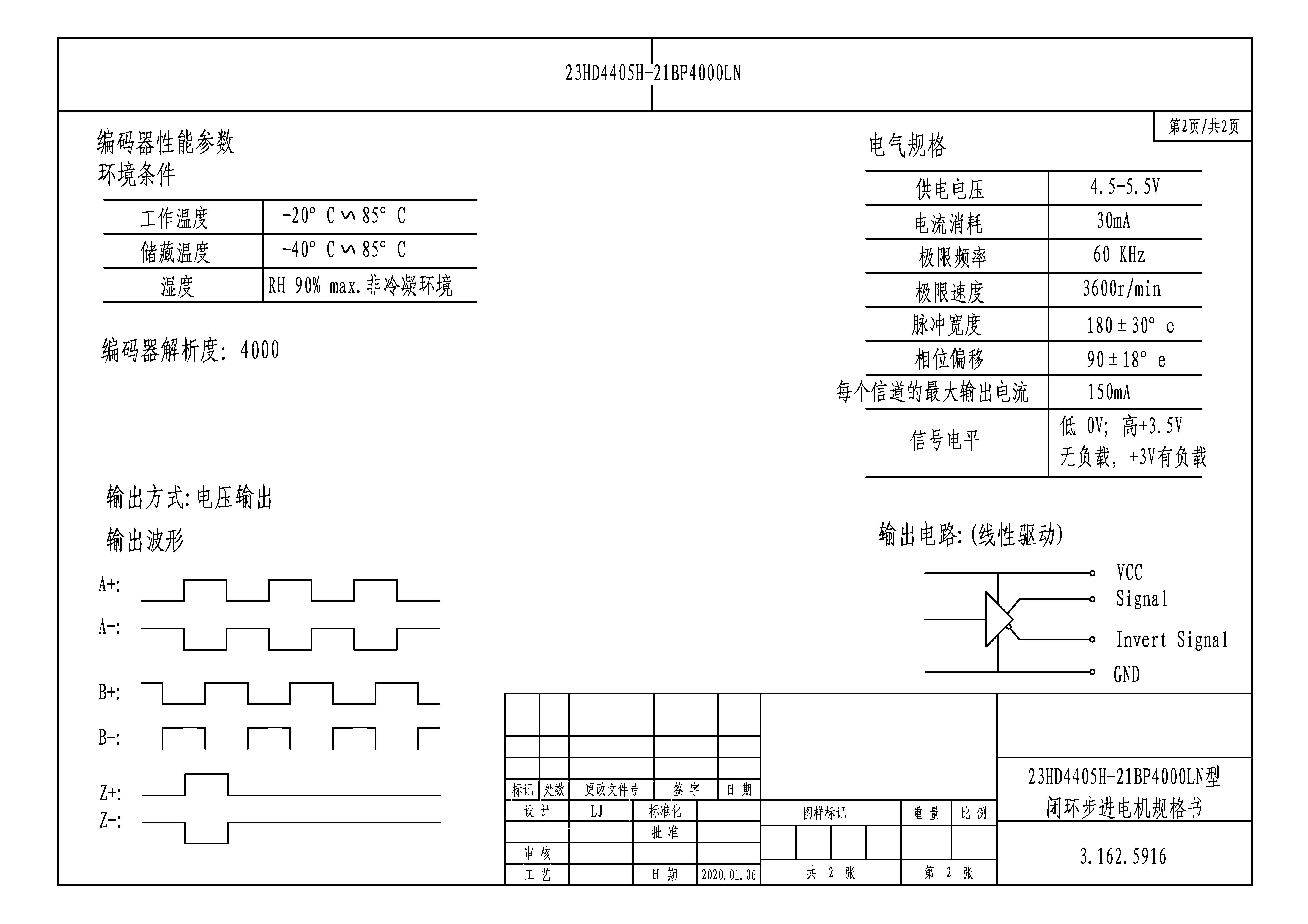

23HD4405H-21BP4000LN Specification A

Nema23 closed loop stepper motor,?16000 pulses per revolution high precision ABZ three-channel encoder Basic motor body height 56. Holding torque 1Nm.

Features

  • Closed-loop Servo Hybrid Stepping Motor
  • NEMA23 stepper motor
  • ABZ three-channel encoder
  • 16000 pulses per revolution
  • Shaft end supports customization

規格參數

額定轉速:500 rpm
法蘭尺寸:57 mm
力矩（Nm）:1 Nm
步距角（°）:1.8
選裝變速箱:是
可選:編碼器
定制化:Shaft & Encoder Resolution
可選驅動器/控制器:

Controllers / Drives Optional

文檔下載

文件 類型 大小 最后更新 鏈接
23HD4405H-21BP4000LN Specification A pdf 519.518KB 2月 / 06 / 2020   Download
