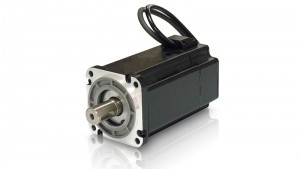

400W超薄伺服電機 60高性能直流伺服電機

400W直流伺服電機，可以有效替代AC伺服，高功率密度的材料和工藝確保電機的尺寸優于市場同類產品。適合于高品質應用環境，支持選配磁性編碼器和光電編碼器，絕對值編碼器。

額定功率200W，額定扭矩0.64Nm。機身長度僅為82mm。支持設計與定制

額定功率（W）:	400 W
額定轉速:	3000 rpm
額定轉矩（Nm）:	1.27 Nm
法蘭尺寸:	60 mm
電機類型:	Permanent Magnet Synchronous Servo Motor
IP防護等級:	IP67
可選:	Gearbox
定制化:	性能定制
訂貨編碼:	APBA60L048030-S
可選驅動器 / 控制器:	直流伺服電機/無刷電機控制器

400W DC Servo Controller-C5-E

Suitable for driving 400W DC servo system. Compact size without additional heat dissipation. CANopen bus interface. Suit...
800W DC Servo Driver-N5-2-2

Suitable for DC servo motors with any number of poles between 0-864W. The rated output current is up to 18A and the peak...
